FUNCTION INTRODUCTION

Pre-Soak Foam

Designed to be used in fully automatic car wash mode, pre-soak foam can dessolve stains and dust.

Once it has been sprayed onto the surface of the vehicle, the car wash equipment will pause for approximately 30 seconds (adjustable as required) and then activate the high-pressure waterjet to carry out a thorough cleaning job.

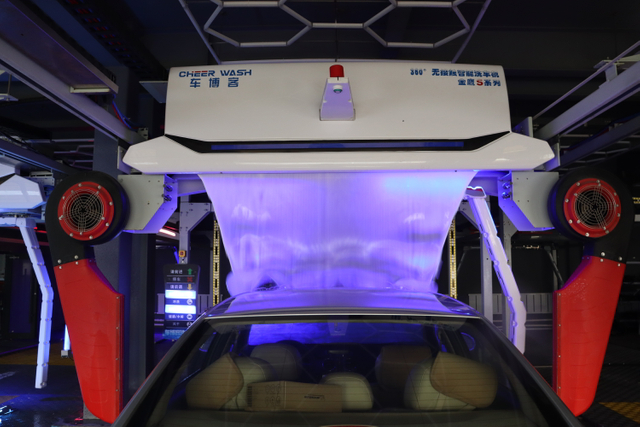

Lava

The foam can effectively cover the entire body of the car and stay on the surface for a period of time, enhancing the contact time and effectiveness of the detergent.

This lava foam may contain some special detergent that can more thoroughly clean the vehicle surface and remove stubborn dirt and grease.

Wax Foam

Wax foam contains wax ingredients.

These waxes form a protective coating after spraying, which can form a protective layer on the surface of the vehicle, reducing the adhesion of fine scratches and dirt, enhancing the air-drying effect whilst increasing the luster, giving the vehicle a fresh, shiny appearance after washing.

Chassis/Hub Cleaning

The vehicle chassis is usually the place where sand, mud and other road pollutants are most likely to accumulate.

For example, when winter comes, the snow removal agent on the road will corrode the chassis of the car. These pollutants will cause corrosion and damage to the vehicle's chassis and mechanical parts.

Therefore, the purpose of high-pressure chassis washing is to thoroughly clean the chassis, protect the parts under the vehicle, and extend their service life.

This step uses high water pressure to wash the vehicle chassis from different angles. High water pressure helps to effectively remove stubborn dirt on the chassis, such as mud, road chemical residues, etc.

After high-pressure chassis washing, the vehicle chassis will not only be cleaner, but also reduce the risk of mechanical failures that may be caused by accumulated dirt. In addition, a clean chassis can also help improve the overall appearance of the vehicle and its long-term value retention.

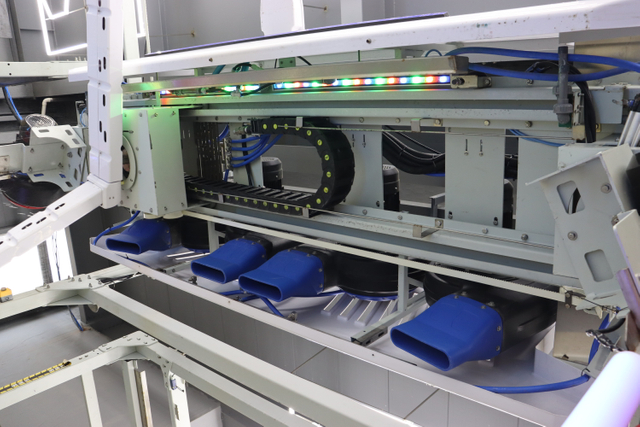

Air-drying system/High pressure air drying

Germany TBT driers + 100% aluminum shell+ heavy-duty frequency converter(18.5kw) system to drive. The main purpose of high-pressure strong air drying is to quickly remove moisture from the vehicle surface and hard-to-reach corners after washing, so as to avoid water droplets remaining on the surface of the vehicle to form water marks or water spots.

At the same time, this step can also save users the time of manually wiping the vehicle surface, ensuring that the entire vehicle becomes dry and clean in a short time, improving the overall washing efficiency.

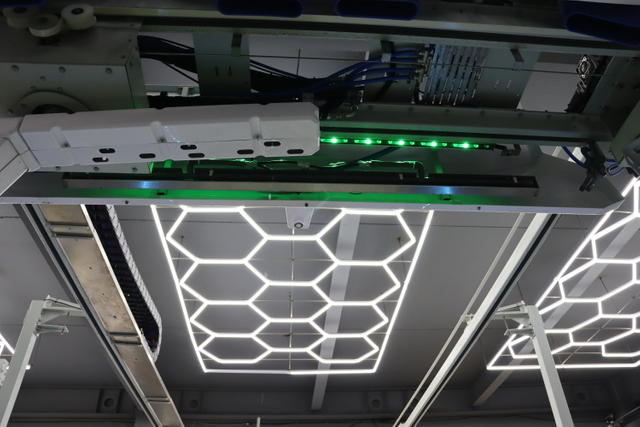

Gorgeous Colorful Light

The colorful lights not only increase the visual beauty of the car washing, but also make the whole scene vivid and eye-catching, especially when washing at night. This design not only attracts customers' attention, but also enhances the user's car washing experience, making the car washing process more pleasant and memorable.

When the water foam combines, the colorful lights can turn it into a variety of colors. At the same time, the intelligent design of the colorful lights allows users to turn them on or off at any time as needed, which not only saves energy, but also can be freely adjusted according to different occasions and personal preferences.

Intelligent 3D Detection System

Equipped with advanced ultrasonic sensors, smart photoelectric sensors and closed-loop controllers, it uses an accurate closed-loop detection system to detect the length of the vehicle to ensure stability, safety, and energy saving.
Remote Control

Through the Internet of Things technology, complete remote startup, shutdown, reset, diagnosis, upgrade, operation, remote liquid level monitoring and other operations.
Fault Self-Check

When the equipment is abnormal, start the self-check and alarm procedures, identify the cause of the fault and record the fault code, which is convenient for query and maintenance.
Leakage Protection

It is used to protect the staff who may get an electric shock in the event of a leakage fault, At the same time, it has overload and short-circuit protection functions, which can be used to protect the circuit and the motor from overload and short-circuit.
Enhanced The Front and Rear Washing

The German PINFL high-pressure industrial water pump is used to ensure that the nozzle water pressure reaches 100kg/cm², which can truly achieve high-pressure washing and sweep stubborn stains.
Integrated Chemical Mixing System

Automatically adjust the ratio of a variety of liquids, including: ordinary car washing liquid, water flooding coating wax, and pre-soak foam.
Clean The Rearview Mirror

The spray head sprays liquid at a 45" angle, easily flushing the rearview mirror and other angular positions.
Intelligent Double Anti-Collision Protection

Intelligent double anti-collision protection utilizes advanced technology that combines moving body servo stepper motor and physical way to make it more responsive, and the protective action more rapid and effective.

The moving body servo stepper motor precisely control movement, sensing and responding quickly, while the physical way protection mechanism ensures that it is quickly triggered in the event of an emergency, minimizing any possible collision or damage.
Moving Body

1. International pickling sheet/laser cutting / CNC bending / welding / servo closed-loop stepper motor / double-layer anti-corrosion. Safe, stable and reliable.

2. Shell material: PMMA, anti-corrosion with fine appearance

Foam Pipeline Self-Cleaning

After the foam sprays to an angle of about 240 degrees, the foam stops spraying and clean water begins to be transported in the pipe system. This design ensures that after spraying the foam once, it is immediately followed by a clean water spray to completely remove the foam residue and avoid the mixing of the two foams.

This not only improves the cleaning effect, but also ensures that each stage of the cleaning process can reach the best state, reducing possible chemical reactions or the formation of deposits. In addition, this spraying method also helps save resources and reduce operating costs.
Swing Arm Moving Horizontally

The advantage of the swing arm moving horizontally technology is that it is more flexible than the fixed L-arm equipment, and through the precise control of the L-arm rotating 90 degrees four times each time, it can achieve 360-degree all-round close-range spraying of wipe-free car wash liquid, making the liquid spraying more even and thorough, thus ensuring that every inch of the car body can be perfectly cleaned and protected.
Water and Electricity Separation Technology

CHEERWASH adopts water and electricity separation technology to completely separate distribution cabinets from moving body of machine working in the wash room.

This technology not only ensures a safe working environment but also decreases the damaging risks towards electrical components. This function also makes the car washing machine have a longer life.
Water/Foam Separation

The pipelines of water and foam are separated. Water comes out directly from the water pump to each nozzle to ensure the maximum water pressure. Meanwhile foam comes out from foam pump through another different pipe to save foam use greatly.

This technology can save more than 1/3 chemical liquids than single pipeline car washing machines.
Direct-Drive Technology

CHEERWASH adopts customized Germany PINFL and TBTwash PW60 high-pressure plunger pump. It is coupled to a 15KW 6-Pole motor by direct-drive technology.

This particular method has following advantages:
1. Reduce the energy loss during transmission compared to traditional belt connection greatly;
2. Keep the motor and pump functioning in a stable, safe and efficient way;
3. Maintenance-free;
4. Make the machine work more stably and safer.
Cleaning effect is better given that the water pressure ejected from nozzles can reach around 100 bars and the robot arm can wash the vehicle at a constant speed and pressure.
High Pressure Water

The high-pressure plunger pump is matched with a high-power motor, a direct-drive connection mode, no belt drive is required, and maintenance-free water foam separation technology is used.

There is no water distribution interface between the water pump and the nozzle, so the water pressure can be adjusted to a higher pressure so that each nozzle can reach 100 kg of pressure spray, and a fan-shaped 45-degree angle forms a high-pressure water jet, so that the equipment always maintains a distance of 35 cm from the car body for washing.

The front, rear and mirrors of the car can be repeatedly strengthened for washing, and the dirt on the car body can be washed almost in a polishing manner.
18.5kw Heavy-Load Frequency Conversion Technology

CHEERWASH adopts 18.5kw heavy-load (22kw light-load) frequency conversion technology to control motors of water pump and airdrying fans.

Advanced frequency conversion technology realizes the stage adjustment of chassis flushing water pressure, body flushing water pressure, and body drying air pressure, Various pressures can be adjusted according to the adjustment of climate and temperature to achieve the maximum optimization of energy saving and cleaning effects.

Main advantages are as follows:
1. Protect motors and extend motors’lifespan
When the motor is started directly, the current will increase 7 to 8 times as big as the rated one. This causes more stress, generates lots of heat and shortens the span life of motors. With CHEER WASH frequency converter, the motor speed and voltage can start from zero and rises smoothly.
2. Make the machine work more stably without vibration.
3. Adjust water pressure (high or low) and airdrying speed (fast or slow).
4. Protect the electrical circuit.
Moving Body Walking Way

1.On rails: On rails is the way the two nylon wheels on the car wash move smoothly along the track beam. This design is not only simple to operate, but it was one of the first walking methods applied to contactless car washes. With this mechanism, the wheels can easily glide on the track, effectively maintaining the stability and reliability of the car wash during operation.

2.In embedded structure: 8-wheel longitudinal drive, driven by a sawtooth belt, its travel mode and structure are relatively complex, stable in use, standard for high-end machines.
