CL600
cheerwash

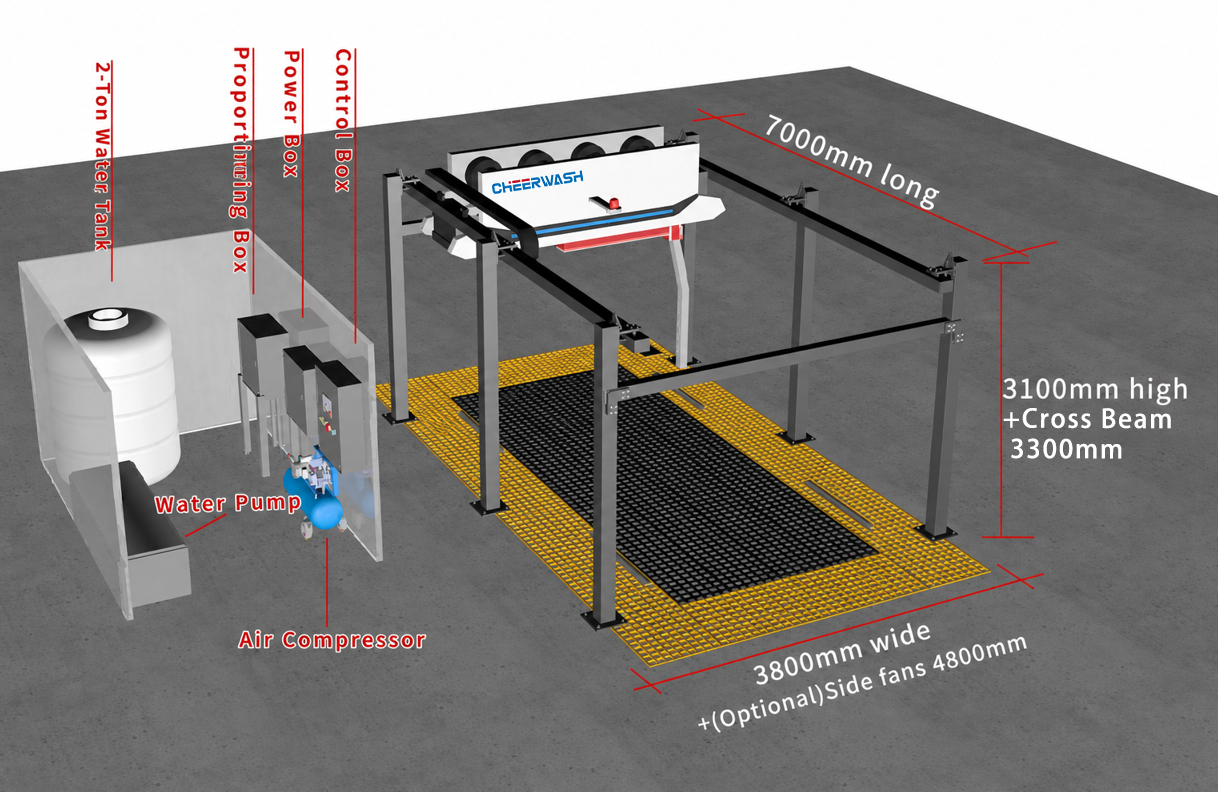

Site Size & Car Wash Size
Site Size(mm):7000*3820*3100
Car Wash Size(mm):5600*2600*2000
Technical Parameters
Technical data sheet | CL600 |
Minimum Controlling Room Size | 6 square meters |
Thickness for Concrete Ground | More than 15 cm and should be flat |
Water Pump Motor | GB 6 Motor 15KW/380V |
Max Water Pressure | 10 MPa |
Air-drying Motor | 4 sets of 5.5KW motors/380V |
Standard Water Consumption | 90-140L/ circle rinsing |
Standard Power Consumption | 0.5-1.2 kWh |
Standard Chemical Liquid Consumption (Adjustable) | 20 - 150ML |
Washing Time (Adjustable) | 3-8 minutes |
Moving Body Walking Way | Walking in embedded structure |
Total Power | 37KW |
Power Requirement | 3 phase 380V / Single phase220V/50 Hz (can be customized) |
Water and foam use separate pipelines: water reaches nozzles directly for maximum pressure, while foam is delivered separately to reduce consumption. This technology saves over two-thirds of chemical liquids compared to single-pipeline systems.
