CL800 Contactless Car Wash Machine

Cheer Wash CL800 is the high-end touchless car wash machine model with best washing effect, best safety system and best air dying effect with supreme drying system.

Swing arm moving horizontally
Automatic detection of car width
Enhanced cleaning for rearview mirror
Water/foam separation
Walking in embedded structure

Quantity:
Availability:





Inquire Add to Basket

Model:
CL800

Products

Product Video

Equipment Size

Technical Parameters

Machine Functions

Site Size & Car Wash Size

Site Size(mm):7850*3820*3300

Car Wash Size(mm):5600*2600*2000

Technical Parameters

Technical data sheet	CL800
Minimum Controlling Room Size	6 square meters
Thickness for Concrete Ground	More than 15 cm and should be flat
Water Pump Motor	GB 6 Motor 15KW/380V
Max Water Pressure	10 MPa
Air-drying Motor	4 sets of 5.5KW motors/380V
Standard Water Consumption	90-140L/ circle rinsing
Standard Power Consumption	0.5-1.2 kWh
Standard Chemical Liquid Consumption (Adjustable)	20 - 150ML
Washing Time (Adjustable)	3-8 minutes
Moving Body Walking Way	Walking in embedded structure
Total Power	37KW
Power Requirement	3 phase 380V / Single phase220V/50 Hz (can be customized)

Machine Functions

The horizontal swing arm technology is more flexible than fixed L-arms. It rotates 90 degrees four times to provide 360-degree, even spraying of car wash liquid, ensuring thorough cleaning and protection.

Swing arm moving horizontally
Automatic detection of car width" refers to a system that uses ultrasonic to automatically measure the width of a vehicle to ensure that the vehicle fits and is aligned correctly during processes such as car washing or parking.

Automatic detection of car width
The spray head sprays liquid at a 45" angle, easily flushing the rearview mirror and other angular positions.

Enhanced cleaning for rearview mirror
Water and foam use separate pipelines: water flows directly to nozzles for maximum pressure, while foam is delivered through a separate pipe to minimize usage. This system saves over two-thirds of chemical liquids compared to single-pipeline systems.

Water/foam separation
8-wheel longitudinal drive, driven by a sawtooth belt, its travel mode and structure are relatively complex, stable in use, standard for high-end machines.

Walking in embedded structure

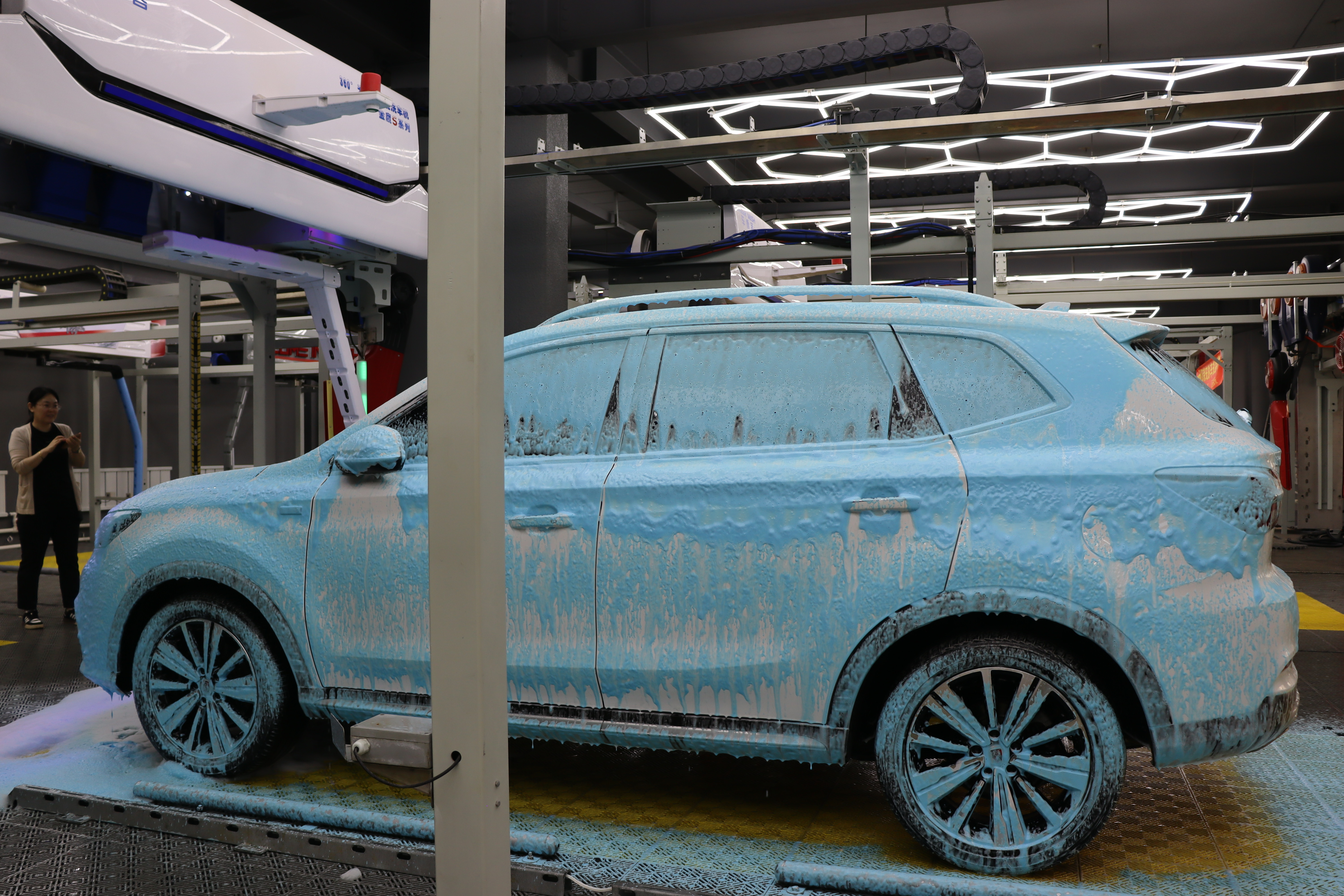

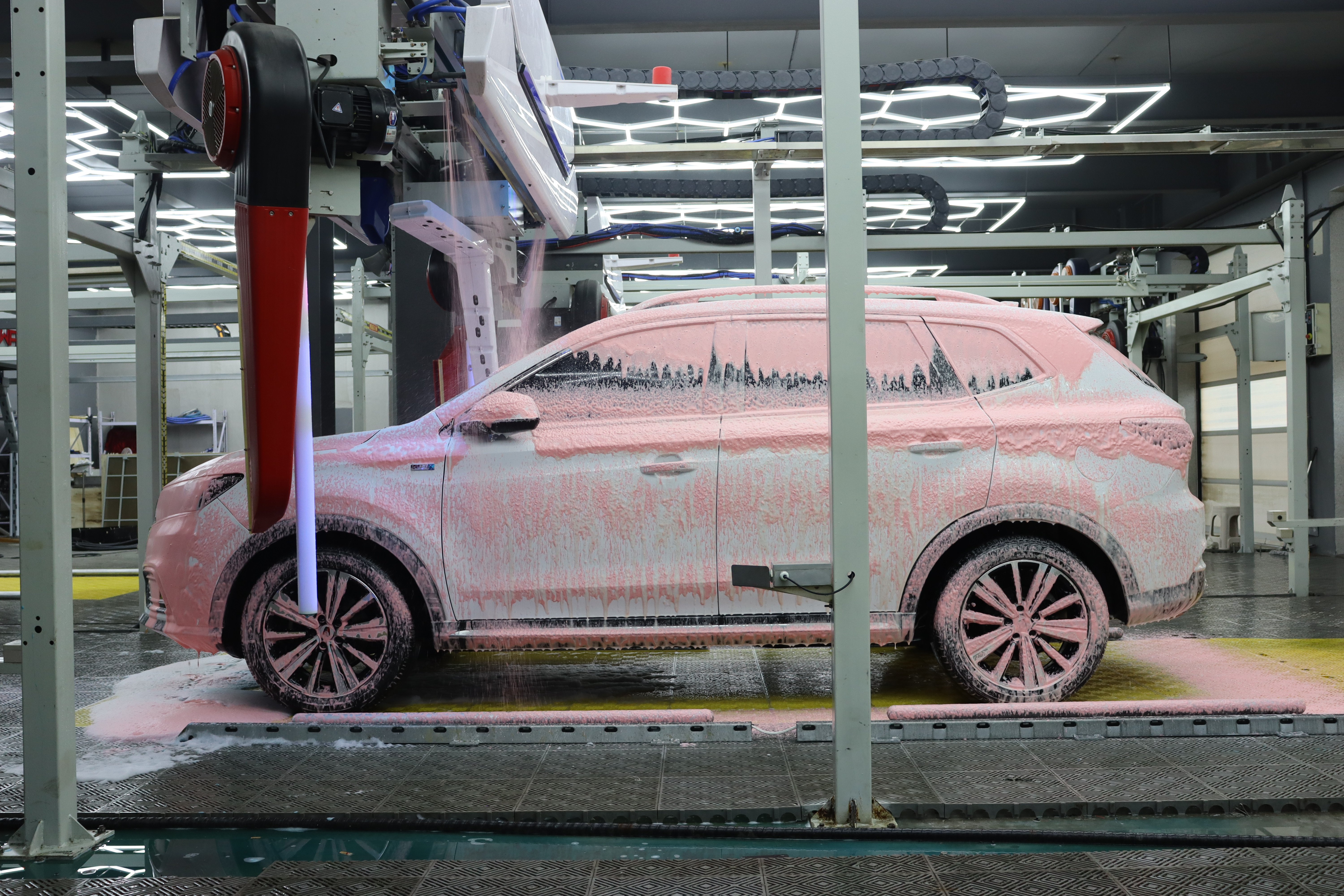

The foam covers the car completely and clings to the surface, improving detergent contact and effectiveness. This lava foam, with special detergents, cleans more thoroughly and removes stubborn dirt and grease.

Lava

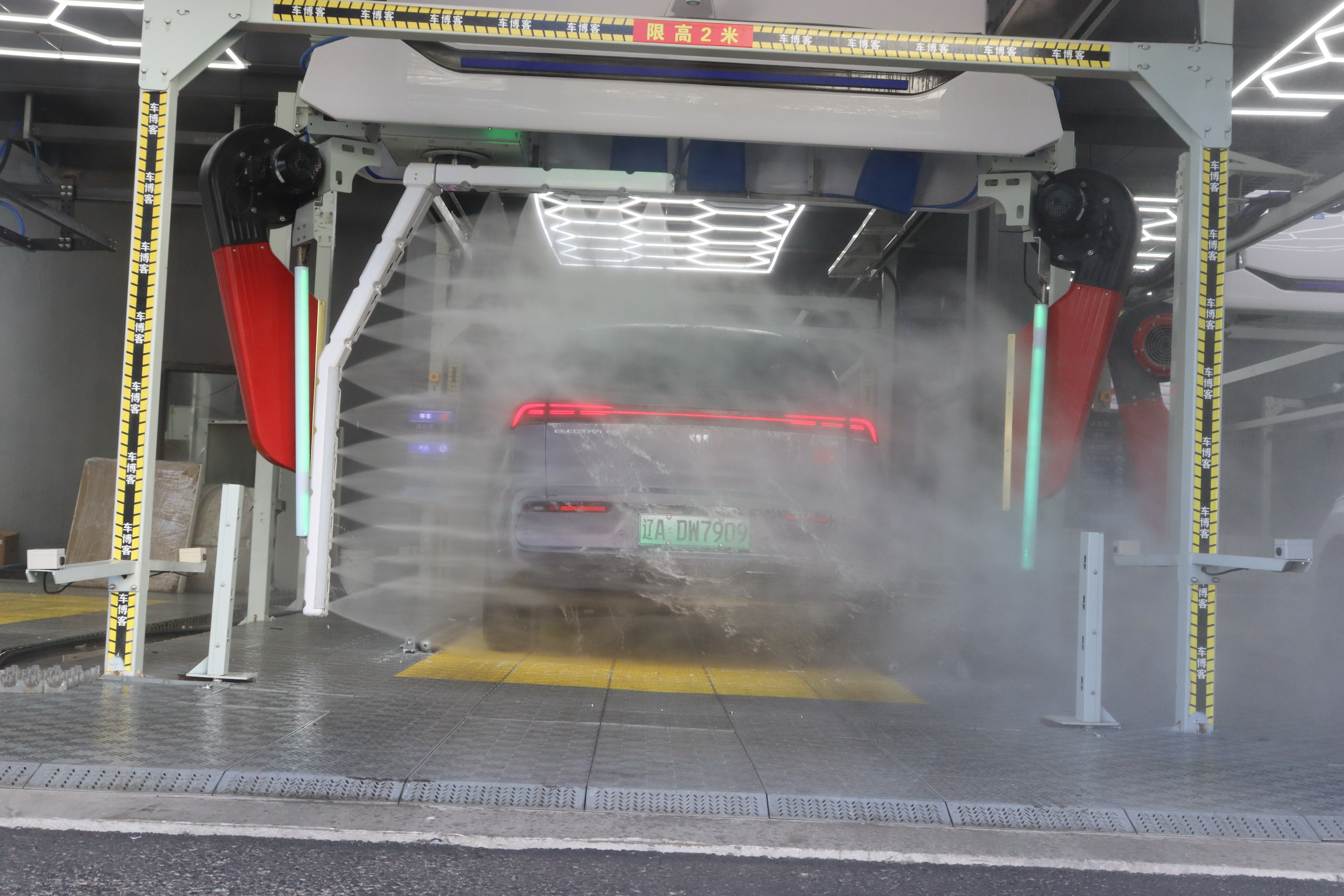

The high-pressure plunger pump with a direct-drive motor eliminates belts and uses maintenance-free foam separation. It achieves up to 100 kg of pressure with a 45-degree jet, maintaining a 35 cm distance for thorough, repeat washing and effective dirt removal.

High pressure water
High-pressure chassis washing removes sand, mud, and road chemicals, preventing corrosion and damage. It cleans from various angles, protects the undercarriage, reduces mechanical issues, and maintains the vehicle’s appearance and value.

Chassis/hub cleaning
